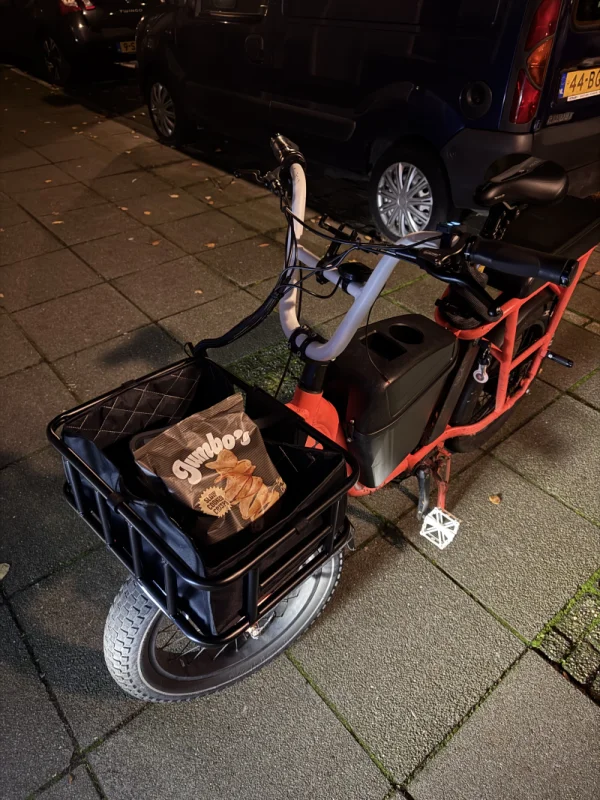

Radrunner - Front Rack Adapter

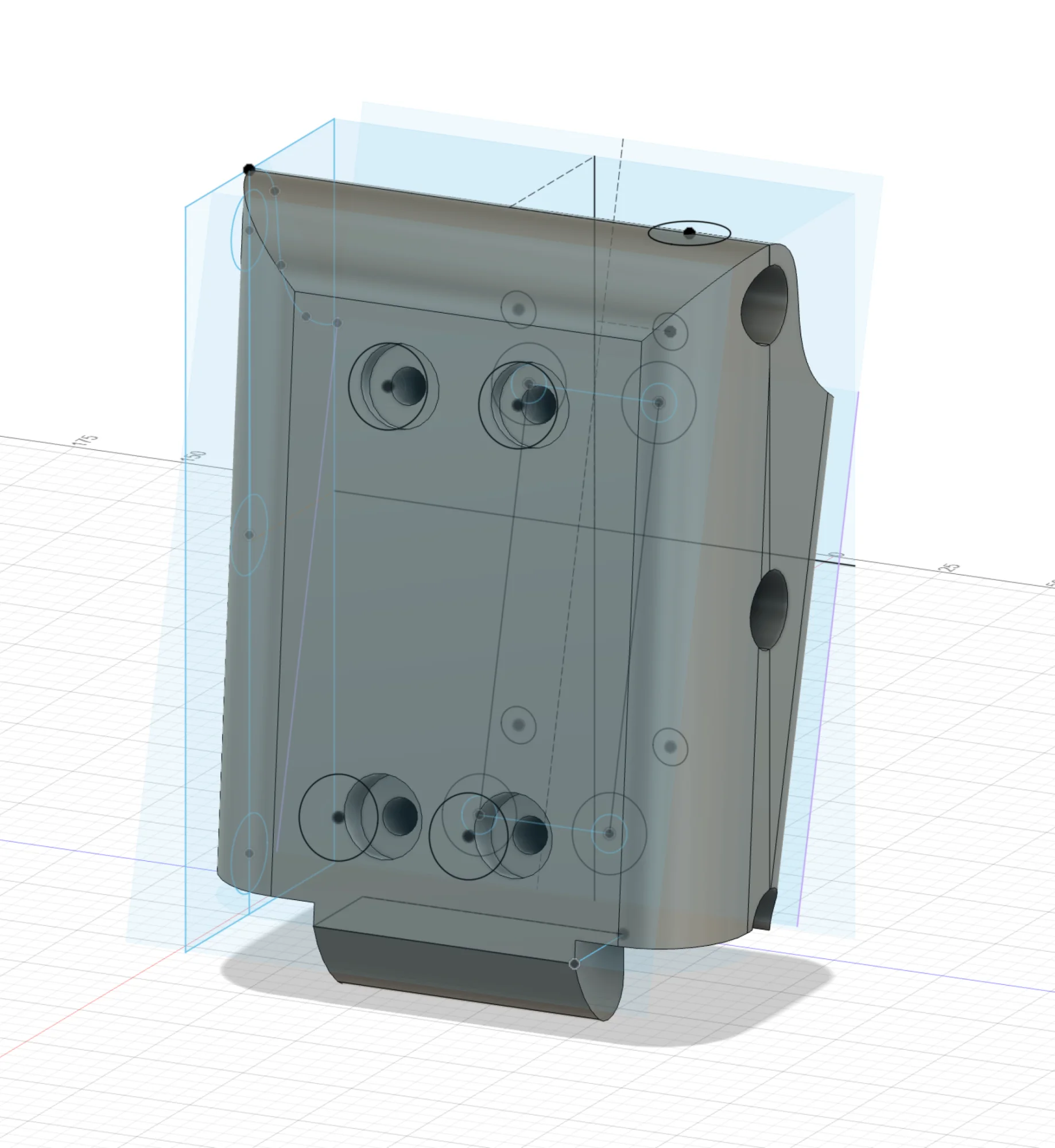

This 3D-printed part is designed to work in combination with the following front rack:

https://nl.aliexpress.com/item/1005009770350911.html

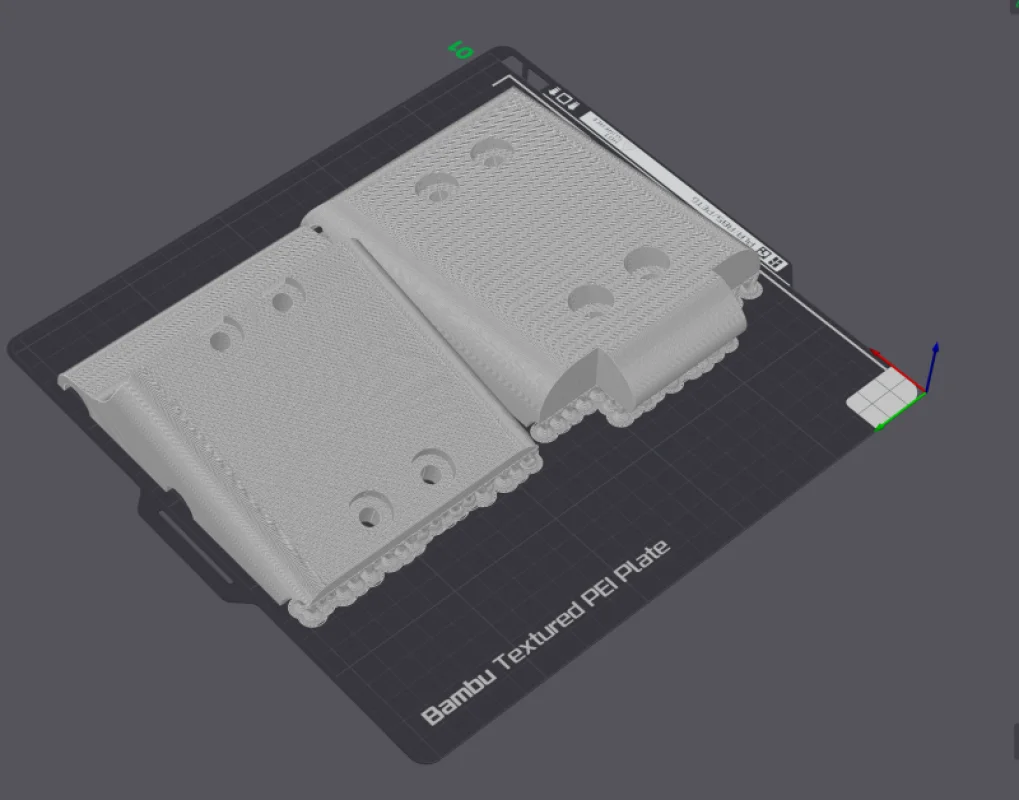

The download includes two versions:

• Horizontal version (ready to print STL) – compatible with current versions of the rack
• Vertical version (ready to print STL) – compatible with an older version of the AliExpress front rack

All racks currently i can find use the horizontal configuration, but the included vertical file ensures backward compatibility with older models.

Print in strength mode! I printed in regular PLA and it works already well in strengh mode (thicker walls and more infill). But if you print in in Petg or carbon infused material it would be stronger, but for me it's not needed.

For the assembly you need:

2× stainless steel bolt M6 × 80 / with screwhead

2× stainless steel bolt M6 × 60 / with screwhead

4× flat washer M6 × 18 × 1.2
